General surgery operating table OM-Delta 01

Ապրանքի կոդ

Գին

Medin+ General surgery operating table OM-Delta 01

Short description
  • General surgery operating table with electrohydraulic adjustment;
  • Combined with sets of additional accessories allows full range of surgery operations;
  • Swapping of head and leg sections allows widens radiolucent zone;
  • Zero position of table top with emergency stopping option;
  • Warranty 24 months.
Features:
  • All open metal surfaces and additional accessories are made of stainless steel;
  • Table base and column protected by stainless steel covers;
  • PVC molded protective cover for adjustment mechanism;
  •  Electrohydraulic floor locking system;
  • Battery charge indicator on hand remote control;
  • Removable, antistatic, seamless, molded polyurethane foam mattresses made with antibacterial ASP technology;
  • Zero position function;
  • Split leg sections;
  • Head section doble inclination adjustments;
  • 6 sectional table top;
  • Longitudinal shift 320 mm;
  • X-ray translucent table top;
  • X-ray film cartridge input from head or leg sections;
  • C-Arm compatible;
  • Compatible with full variety of additional accessories.



Adjustments:
  • Lifting/lowering of the table top – electrohydraulic;
  • Trendelenburg/reverse Trendelenburg – electrohydraulic;
  • Lateral tilt – electrohydraulic;
  • Dorsal section tilt – electrohydraulic;
  • Longitudinal shift – mechanical;

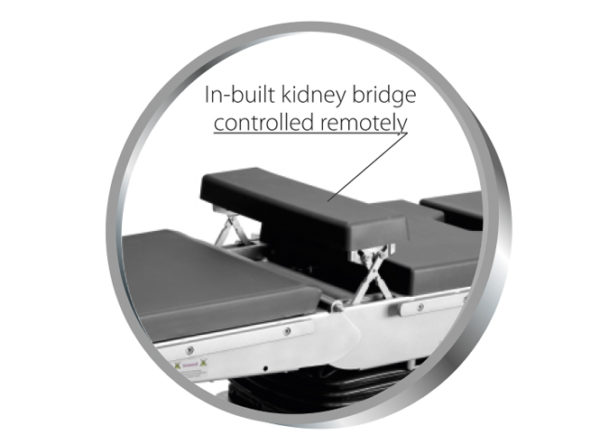

  • Kidney bridge lifting – electrohydraulic;

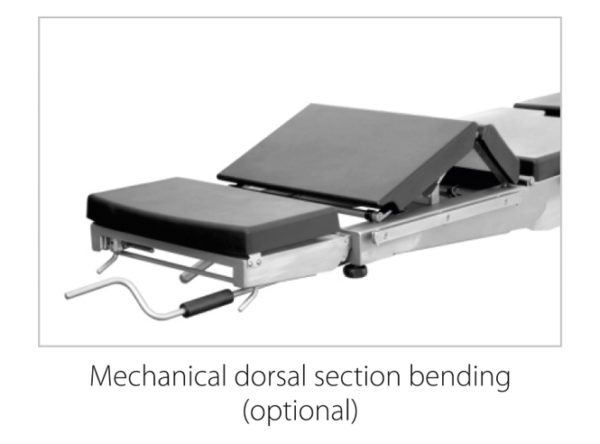

  • Dorsal section bending (optional) – mechanical;
  • Floor locking system – electrohydraulic;
  • Leg and head sections – gas springs.



Additional options:
  • Ring-shaped head cushion Ø205 mm;
  • Lumbar roll cushion;
  • Dorsal section bending.
Operating Electrohydraulic
Table height (without mattresses), mm 640…990
Table top length, mm 2100
Table top width (incl. side rails), mm 550
Table top sections (incl. split leg section) 6
Longitudinal tilt (Trendelenburg/reverse Trendelenburg) ±30˚
Lateral tilt ±20˚
Dorsal section tilt +75˚/-45˚
Leg sections tilt +30˚/-90˚
Head section tilt +30˚/-35˚
Castor size, mm Ø100
Kidney bridge lifting, mm 105
Dorsal section bending (optional), mm 105
Longitudinal shift, mm 320
Remote control Yes
Zero position Yes
Built-In rechargeable batteries Yes
Supply voltage 230 V, 50 Hz
Electric drives supply voltage 24 V
Power consumption, max 250 W
Batteries charging time. h 3
Approximate battery life 48 hours
Table weight, kg 200
