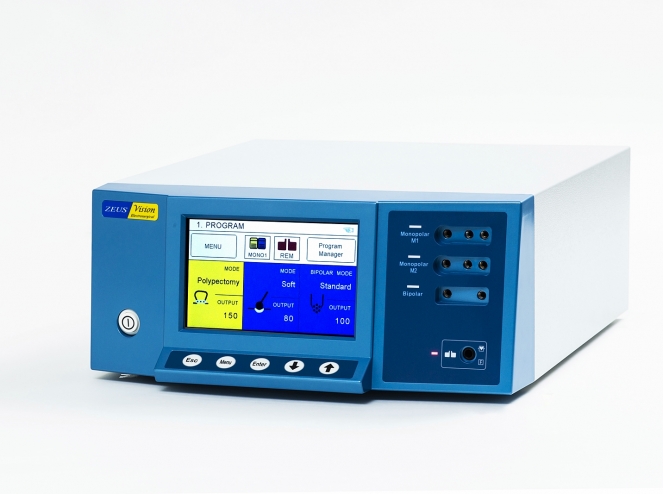

– Color Graphic User Interface.
Wide TFT LCD mount, clean and shaper image quality, unlike the existing
electricity and the innovative new U.I. configuration operation.
– Best Safety with Feedback System.
REM(Return Electrode Monitoring) monitors the size of contact area between a
patient and the pad. If the size is inappropriate, it automatically blocks the
high-frequency current to minimize the danger of burning incidents.
– All Touch Screen System & Key.
Touch screen system through the implementation easier and faster with a parameter
setting, external key management can be the same as a touch screen.
– Diversity of Features Bipolar.
Bipolar cut, Biploar blend, Bipolar forced to add features to implement more
up-grade the optimal system.
– Endo-Cut(Intra-Cut) (Option 1)
Endo-Cut is a monopolar electrosurgical treatment method and a cut which is carried out
in intervals(fractionated cut) with software-controlled alternations between cutting and
coagulation stages.
– Compatible with Argon-Z(Argon Plasma Coagulation)
|
Mode
|
Output Power
|
|
|
Cut
|
Pure
|
400W / 200Ω
|
|
Blend 1
|
250W / 200Ω
|
|
|
Blend 2
|
200W / 200Ω
|
|
|
Blend 3
|
150W / 200Ω
|
|
|
Coagulation
|
Contact
|
120W / 200Ω
|
|
Spray
|
100W / 300Ω
|
|
|
Argon
|
100W / 300Ω
|
|
|
Bipolar
Coagulation |
Standard
|
100W / 100Ω
|
|
Autostart
|
100W / 100Ω
|
|
|
Forced
|
80W / 100Ω
|
|
|
Bipolar
Cut |
Cut
|
120W / 200Ω
|
|
Blend
|
100W / 200Ω
|
|
|
Endo Cut
|
Papillotomy
|
150W / 100Ω
|
|
Polypectomy
|
150W / 100Ω
|
|
|
Coagulation
|
Soft
|
80W / 100Ω
|
|
Main Frequency
|
400, 500 KHz
|
|
|
Power Source
|
AC120V or AC230V, 50/60 Hz
|
|
|
Protection Class
|
Class 1, Type CF
|
|
|
Dimension(WxDxH)
|
388x410x160 mm
|
|
|
Weight
|
12.5 Kg
|
|
– CE, ISO13485, KFDA certified.
Accessories
| Image | Code No. | Name | Specification |
|---|---|---|---|
| CT01-01R | Cart | W400xD480xH870(mm) | |
| EL04-04D | Electrode | Needle angled 45˚ 2.4*70mm, Black | |
| EL04-02D | Electrode | Needle 2.4*70mm, Black | |
| EL03-02D | Electrode | Loop 6mm, Black | |
| EL02-02D | Electrode | Ball 5mm, Black | |
| EL01-02D | Electrode | Knife 2.4*70mm, Black | |
| BF03-02R | Bipolar forceps | Angled 17.8cm 1.0 tip | |
| BF03-01R | Bipolar forceps | Angled 9.0cm 0.5 tip | |
| BF02-03R | Bipolar forceps | Straight 17.8cm 1.0 tip | |
| BF02-02R | Bipolar forceps | Straight 12.1cm 1.0 tip | |
| BF02-01R | Bipolar forceps | Straight 9.0cm 0.5 tip | |
| BF01-02R | Bipolar forceps | Bayonet 15.2cm 1.0 tip | |
| BF01-01R | Bipolar forceps | Bayonet 17.8cm 1.0 tip | |
| CA03-01R | Ground cable | Cable 4Ø, 3m | |
| CA02-03R | Patient return plate cable | VelleyLab type plug silicon cable 3m | |
| CA01-03R | Bipolar forceps cable | 2 pin plug silicon cable 3m, EU type connector | |
| CA01-02R | Bipolar forceps cable | 2 pin plug silicon cable 3m, EN type connector | |
| CA01-01R | Bipolar forceps cable | 2 pin plug cable 3m, EN type connector | |
| HD02-01D | Disposable twin button handle | 3 pin plug cable 3m | |
| HD01-02R | Monopolar handle & cable | Silicon cable 4Ø, 3m | |
| HD01-01R | Monopolar handle & cable | Silicon cable 4Ø, 3m | |
| PL03-03D | Disposable patient plate | Pediatric dual(68 cm2) | |
| PL03-02D | Disposable patient plate | Adult dual(131cm2) | |
| PL02-06R | Silicon patient plate | 110mm x 80mm valleyLab type plug cable 2m | |
| PL02-05R | Silicon patient plate | 165mm x 90mm valleyLab type plug cable 2m | |
| PL02-04R | Silicon patient plate | 240mm x 150mm valleyLab type plug cable 3m | |
| ST03-01R | Latex Perforated Strap | 600×1250 mm (WxL), 60 hole | |
| FS02-01R | Double foot switch | 4 pin plug cable 4m | |
| FS01-02R | Single foot switch | 3 pin plug cable 4m |
