CETUS x15 Critical Care Patient Monitor

SKU
Price

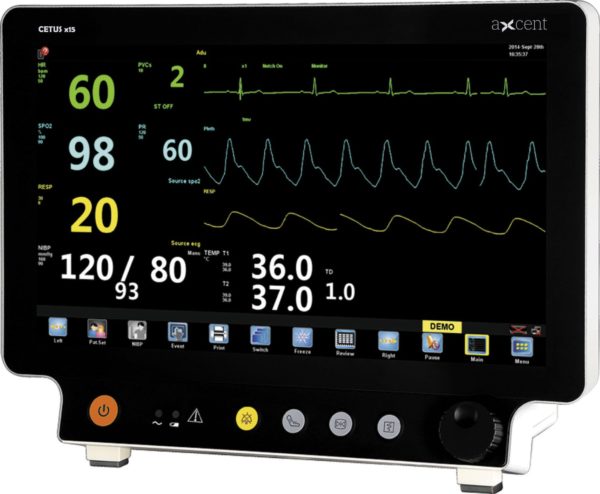

aXcent CETUS x15 Critical Care Patient Monitor

Multiple parameter options satisfy the need for ICU, CCU, NICU.
Configuration: ECG, SpO2, NIBP, TEMP, Resp, PR; Li-ion battery
Optional: Touch-Screen, 12-lead ECG, Masimo SpO2, 2/4/6 IBP, C.O., EtCO2, Multi-Gas, BIS, NMT,
VGA, Thermal Recorder, Wired/Wireless CMS
Masimo SET® SpO2
Provides anti-motion and anti-low
perfusion SpO2 measurement.

Features
• 15.6” High resolution TFT LCD Touch screen
• 10 waveform display, up to 12-lead ECG analysis
• Useful calculation (Hemodynamic, Drug Dose, Oxygenation, Ventilation)
• Pacemaker detection
• ST & arrhythmia analysis
• SpO2 support PVI and PI, low perfusion 0.2%
• Aspect BISx module, NMT module optional
• Wired/Wireless CMS, support HL7 protocol to HIS
• SpO2 pulse-tone modulation (Pitch Tone)
• VGA support external display
• Graphical & tabular trend review (120 hours)
• 48 hours full disclosure wave review for each patient

CETUS x15 Critical Care Patient Monitor
Multiple parameter options satisfy the need for ICU, CCU, NICU.
Configuration: ECG, SpO2, NIBP, TEMP, Resp, PR; Li-ion battery
Optional: Touch-Screen, 12-lead ECG, Masimo SpO2, 2/4/6 IBP, C.O., EtCO2, Multi-Gas, BIS, NMT,
VGA, Thermal Recorder, Wired/Wireless CMS
Masimo SET® SpO2
Provides anti-motion and anti-low
perfusion SpO2 measurement.
Bispectrial Index™ by Aspect
Monitor the level of consciousness
of the patient under general anesthesia
or sedation. provides BIS, SQI, EMG, SR,
SEF, TP, PC value and EEG wave.
Masimo Phasein IRMATM/ISA
Sidestream/Mainstream EtCO2
Allows selection of the modality best
suited to the application, monitoring
with infrared absorption technique.
NMT
Intergrade Organon TOF-Watch® SX
C.O.
Cardiac Output
IBP
2-4 Channel, support IBP waveform
overlapping display

Display
15.6” TFT (touch screen optional)
Resolution: 1366 x 768
Number of traces: 10 waveforms
I/O
LAN: 1 standard RJ45 port
WLAN: IEEE 802.11b/g/n
USB: 2 USB connectors
SD: 1 SD card socket
VGA: 1 VGA monitor connector
Output: 1 connector for Nurse call,
Defib Sync Analog Output
ECG
Lead type: 3-lead, 5-lead,12-lead
ECG waveform: 2 channels, 7 channels,
12 channels
Display sensitivity: 2.5 mm/mV (×0.25),
5 mm/mV (×0.5), 10 mm/mV (×1.0),
20 mm/mV (×2.0)
Wave sweep speed: 6.25 mm/s, 12.5 mm/s,
25 mm/s, 50 mm/s
Bandwidth
Diagnostic mode: 0.05 Hz~100 Hz
Monitor mode: 0.5 Hz~40 Hz
Surgery mode: 1 Hz~20 Hz
Strong filter mode: 5Hz~20 Hz
CMRR>100 dB
Technical Specifications
Notch: 50/60 Hz notch filter can be set
to on or off
Differential input impedance >5MΩ
Electrode polarization voltage range: ±400mV
Baseline recovery time <3s after defibrillation
(in monitor and surgery mode)
Calibration signal: 1 mV (peak – peak),
accuracy ±3%
RESP
Measurement method: Thoracic electrical
bioimpedance
Rate: 0 – 150 bpm
Measuring lead: Lead I, II
Wave gain: ×0.25, ×0.5, ×1, ×2
Respiratory impedance range: 0.5-5 Ω
Baseline impedance: 500-4000 Ω
Gain: 10 grades
Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s
TEMP
Accuracy: ±0.1 or ±0.2 °F (without probe)
Measurement range: 5~50℃ (41~122 °F)
Channel: Two channels
Resolution: 0.1℃
Parameters: T1, T2 and TD
SpO2
Measurement range: 0-100%
Resolution: 1%
Accuracy: ±2% (70-100%, Adult/Pediatric);
±3% (70-100%, Neonate);
0-69%, unspecified
Refreshing Rate: 1s
Masimo SET® SpO2(Optional)
Measurement range: 0-100%
Resolution: 1%
Accuracy: ±2% (70-100%, Adult/Pediatric,
non-motion, low prefusion);
±3% (70-100%, Neonate,
non-motion);
±3% (70-100%, motion); 0-69%,
unspecified
Refreshing Rate: 1s
Pulse Rate
Range: 30~254 bpm
Resolution: 1 bpm
Accuracy: ±2bpm (non-motion)
±5bpm (motion)
Refreshing rate: 1s
NIBP
Measurement method: Automatic
oscillometric method
Operating mode: Manual, automatic,
continuous
Measurement unit: mmHg/kPa selectable
Typical measurement time: 20~40 s
Measurement type: Systolic, Diastolic,
Mean Measurement range (mmHg)
Range of Systolic pressure: Adult 40-270
Pediatric 40-200
Neonatal 40-135
Range of Diastolic pressure: Adult 10-210
Pediatric 10-150
Neonatal 10-95

Range of Mean pressure: Adult 20-230
Pediatric 20-165
Neonatal 20-105
Measurement accuracy
Maximum average error: ±5 mmHg
Maximum standard deviation: 8 mmHg
Resolution: 1 mmHg
Interval: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120,
180, 240, 480 minutes
Overpressure protection: Software and
hardware, double safety protection
Cuff pressure range: 0-280 mmHg
IBP (Optional)
Channel: 2, 4 or 6-channel
ART: 0 to 300 mmHg
PA: -6 to 120 mmHg
CVP/RAP/LAP/ICP: -10 to 40 mmHg
Measurement range: P1/P2 -50 to 300 mmHg
Resolution: 1mmHg
Accuracy: ±2% or ±1mmHg,
whichever is greater (without sensor)
Sensitivity: 5uV/mmHg/V
Impedance range: 300 to 3000 Ω
C.O. (Optional)
Method: Thermodilution
Range: C.O.: 0.2 to 20 L/min
TB: 23 to 45 ℃
T1: -1 to 27℃
Accuracy: C.O.: ±5% or ±0.1L/min,
whichever is greater
TB, T1 ±0.5℃ (without sensor)
Standard Mainstream CO2 (Optional)
Measurement range: 0-19.7%, 150 mmHg,
or 0-20 kPa
Resolution: 0.1 mmHg
Measurement accuracy
0-40 mmHg: ± 2 mmHg
41-70 mmHg: ± 5% of reading
71-100 mmHg: ± 8% of reading
101-150 mmHg: ± 10% of reading
Respiration rate: 3-150 bpm
Respiration rate accuracy: 1 ±1bpm
Warm-up time: 97% within 8 s,
full accuracy within 20 s
Standard Sidestream CO2 (Optional)
Measurement rage: 0-20% (0-150 mmHg)
Accuracy: < 5.0% CO 2: ± 2 mmHg
> 5.0% CO 2: < 6% of reading
Respiration rate: 2~150 BPM
Respiration rate accuracy: 1% ±1BPM
Warm-up time: 97% within 45 s, full accuracy
within 10 min.
Rise times (t 10-90%): About 100 ms,
when flow is 100 ml/min, adult water trap,
1.5 m sampling tube
Delay time: <3 sec when flow is 100 ml/min,
adult water trap, 1.5 m sampling tube
Recorder (Optional)
Built-in, Thermal dot array
Horizontal resolution: 16 dots/mm
(25 mm/s paper speed)
Vertical resolution: 8 dots/mm
Paper speed: 25 mm/s, 50 mm/s
Number of waveform channels: 3

Phasein ISA Sidestream CO2 (Optional)
Warm-up time: Full accuracy within
10 seconds
Sampling flow rate: 50ml/min(+/-10/min)
Measurement Range: 0-25%
Accuracy: 0~15% (±0.2% of the reading)
15~25%, unspecified
Rise time: 200 ms, typical at 50 ml/min
flow rate
Total response time: within 3 seconds
(with 2 m Nomoline sampling line)
AWRR Range: 0-150 bpm
AWRR Accuracy: ±1 breath
Phasein IRMA™ Mainstream CO2 (Optional)
Measurement Range: 0-25%
Accuracy: 0~15% (±0.2% of the reading)
15~25%, unspecified
Warm-up time: Full accuracy within ‚
10 seconds
AWRR Range: 0-150 bpm
AWRR Accuracy: ±1 breath
Phasein IRMA™ AX+ Mainstream Multi-gas
(Optional)
Gas: CO2, N2O, HAL, ISO, ENF, SEV, DES with
automatic identification
Warm-up time: Full accuracy within
20 seconds for IRMA
AX+ CO2 Accuracy:
0-10%: ± (0.2%+2% of the reading)
0-15%: ± (0.3%+2% of the reading)
N2O Accuracy:
0-100%: ± (2%+2% of the reading)
HAL, ISO, ENF:
0-8%: ± (0.15%+5% of the reading)
SEV:0-10%: ± (0.15%+5% of the reading)
DES:0-22%: ± (0.15%+5% of the reading)
Agent identification time: <20 s (typical <10 s)
AWRR range: 0-150 bpm
AWRR accuracy: +/-1bpm
Apnea time: 20~60 s
