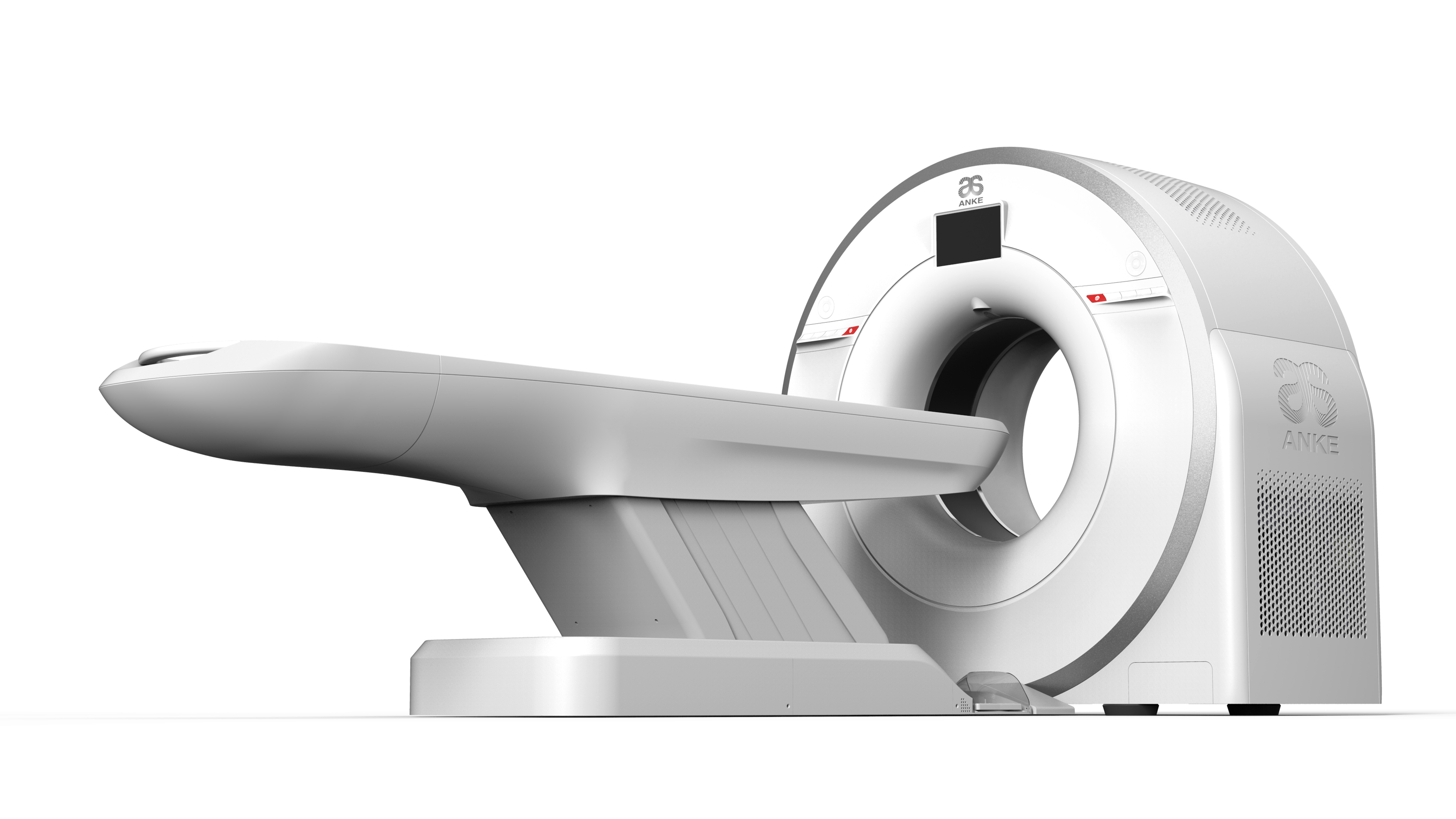

ANKE ANATOM 64 Fit 64-slice Spiral CT


ANATOM 64 Fit adopts ANKE’s self-developed OptiWave
detector, which is organised and supported by the Ministry of
Industry and Information Technology of the People’s Republic of
China. It is designed with an isofocal hardware structure, combined with the AccuShape
3D stereoscopic anti-scattering grids, so that the distance from the X-rays to the corresponding receiving unit of the detector is the same. In addition of obtaining high quality, high resolution images, it also achieves wider body coverage with high pitch in spiral scanning, which not only improves examination efficiency but also enriches clinical applications.

Field replaceable unit (FRU) design, the key parts be easily disassembled, all are in order to
achieve the purpose of simplifying the maintenance operation and reducing the maintenance time. Each detector module can be independent of disassembly and replacement which makes the detector module maintenance and system upgrades completed quickly at the scene. It can reduce the user’s operation and maintenance costs, on the other hand, ensure the equipment with
continuous upgrading ability. Under the same conditions, the service life of the CT detector depends on the decay amplitude of the output signal induced by accumulated exposure dose over time. OptiWave detector has been designed of the optimal structure, even after 10 years of use, the radiation damage caused by signal attenuation is less than 8%. It not only prolongs the service life of the detector but also ensures the users ’ maximum return on investment.

“sky-eye” camera can intelligently recognize the 2D center of the scan range and
automatically aligns it with the isocenter. With one click, AccuPositioning
uses all of this information to automatically center your patient for a completely
hands-free positioning experience. System is enable the system to intelligently identify
multiple positioning points on the human body and display the scanning site on the intelligent touch screen terminal. As well it enables automatically identify the isocentric
position of the proposed scanning site to achieve precise and intelligent patient
positioning. Through the application of this technology, it not only substantially improves
the accuracy of patient positioning and reduces operational errors, but also better
protects patients from the risk of collision and accidental injury. More importantly, the
AccuPositioning system also helps the technician to standardise operations and mitigate
the increase in radiation dose to the patient’s surface due to inaccurate positioning, while
further reducing image noise, reducing artefacts and improving image

Gantry’s built-in camera-“Eagle Eye”allows real-time monitoring of the patient’s status, together with the AI-based AccuClear function, and enables intelligent real time image artifact correction. The novel design of the built-in camera allows for both remote observation of the person being
examined and also real-time motion recognition. With AI, correction of motion artefacts can be performed. It is particularly helpful for scanning patients who have involuntary movements, subconscious movements etc.

ANATOM 64 Fit adopts high precision and double closed-loop feedback system. One million feedback signal will be obtained in a single circle, which ensures precise control of the system for rotary motion with a resolution of 0.00036 degrees. At the same time, the rotating drive control part can adjust the speed according to the feedback data, and guarantee the system to run
smoothly in the 5/1000 deviation range. In addition, the system can adjust the position of the scanning frame in real time according to the read position feedback information, so as to ensure accuracy of the rotation angle. ANATOM 64 Fit has been designed to retain the safety factor of 12 times, providing more than 10 years of service life.

AccuSlip-ring of ANATOM 64 Fit with a new design and new material, compared with the traditional CT, is more stable and abrasion resistance, so that the service life of the carbon brush is 1.5 times higher than the traditional techniques. The slip-ring & carbon brush structure of the traditional design need to be replaced within 2 years, while as replacement cycle of ANATOM 64 Fit can reach more than three years, greatly reducing the hospital daily maintenance cost. AccuSlip-ring of excellent performance, not only to fully guarantee the stability of power and data
AccuGantry AccuSlip-ring transmission between fixed part and the rotating part, but also ensure the normal operation of the equipment cycle and create greater economic benefits for the user.
