To Satisfy Various Surgical Needs for Morden in OR
TriLite LS810 series combines the latest LED optical technology with a professional design and provides a variable color temperature to meet the clinical needs of various surgery teams.
Superior Surgical Optical Performance
Adopting the latest generation of LED materials, and through the open-design appearance and new lens arrangement, the TriLite LS810 delivers outstanding optical performance with an advanced cavity illumination, shadow correction, focus pattern, and cold IR-free light. The cold IR-free light prevents patients’ wound tissues from dryness and necrosis due to illumination heat and minimizes discomfort for both surgical team and patient resulting from long hours of operation.
Innovative Surgical Optical Technology
Combining the new generation of LED technology with multi-layer optical lens, the TriLite LS810 offers appropriate color temperature, high Ra, and high R9 while maintaining sufficient brightness. The innovative surgical LED technology enhances surgical correctness on the organ, vessel tissues, etc for a surgeon.
Variable Color Temperature
TriLite LS810 provides a variable color temperature of 3,500K ~ 5,000K, which can meet different surgical needs and actual clinical needs of doctors.
Full HD Resolution Camera System

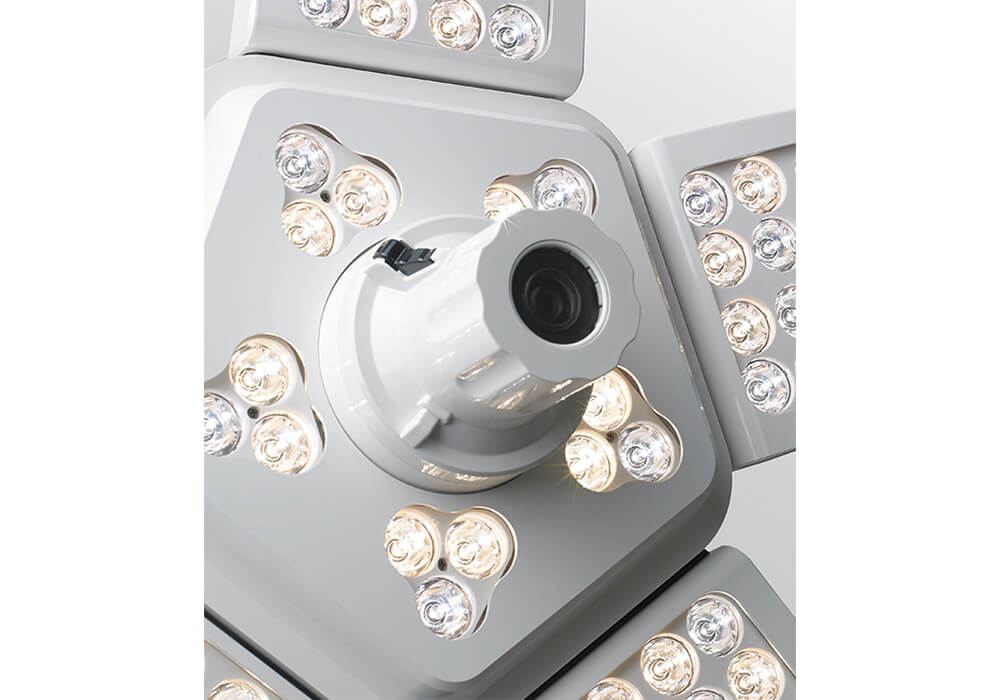

The central built-in Full HD camera provides clear, high resolution images during surgeries. The surgical team can capture images and record videos with the surgical light which brings convenience and correctness to the procedure.
An Endoscopic Surgical Light Designed for MIS Surgeries
TriLite LS810’s Endo Light Mode offers both of desired minimum illumination in a dark OR environment and viewing screen-image comfort in all kinds of practical MIS surgical needs for surgical teams.
Aero Dynamic Light Head Desidned for High Laminar Flow Effiency
The streamlined open-design lighthead of TriLite LS810 provides excellent laminar flow penetration through the lighthead and minimizes air turbulence in the surgical field to ensure a sterile surgical environment.
Standard Specifications
| Model | TriLite LS810-500 | TriLite LS810-700 |
|---|---|---|
| Diameter of Lighthead(mm) | 640 | 764 |
| Maximum Illuminance at 1m Distance(Lux) | 120,000 | 160,000 |
| Light Field Diameter(mm) | 130~250 | 135~265 |
| Depth of Light Field(mm) | 1,400 | 1,300 |
| Color Temperature(K) | 4,300 | 4,300 |
| Color Rendering index(Ra) | 95 | 95 |
| Power Consumption of Lighthead | 80 | 110 |
| Total Irradiance | 433 | 577 |
| LED Average Life | 50,000 | 50,000 |
| Intensity Level indication | 12 steps | 12 steps |
